Coolant Oil Separator

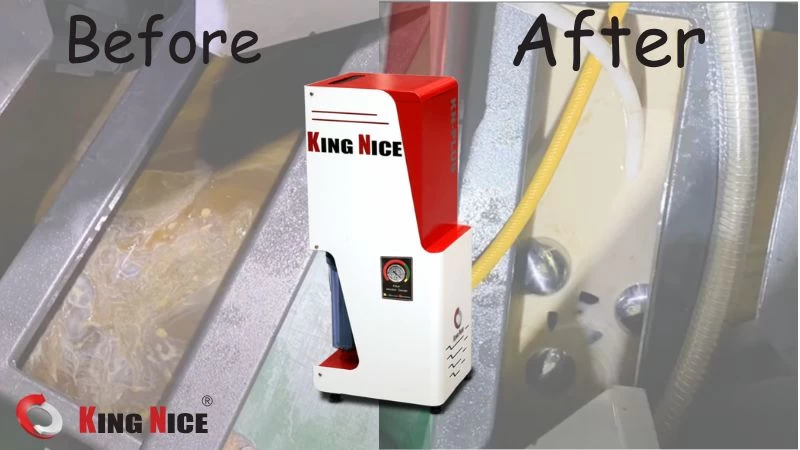

Coolant Purify Machine - KN-PLUS
KN-PLUS Coolant Purify Machine, Depending on the type of processing fluid, the lubricating oil and grease used on the machine will be emulsified by the metal cutting fluid or floated on the surface of the working fluid in a "slick" manner. In either case, oil slick or foreign oil can cause failure of the working fluid.

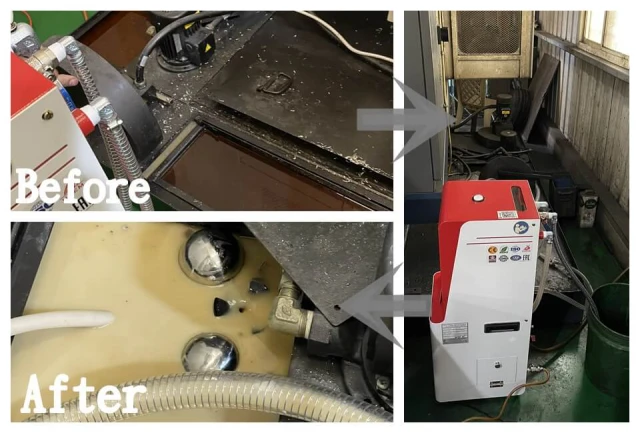

The "Coolant Oil Separator" developed by King Nice Technology can effectively separate the skid oil on the surface of the water tank, filter impurities, and emulsified substances, and reduce the bad odor generated by the fusion of the cutting fluid. It can also reduce the oil stain caused by oil mist and liquid splash, which is attached to the machine and work, avoid the stimulation and allergies caused by the skin contact of the staff, improve the processing precision, and save the tool wear.

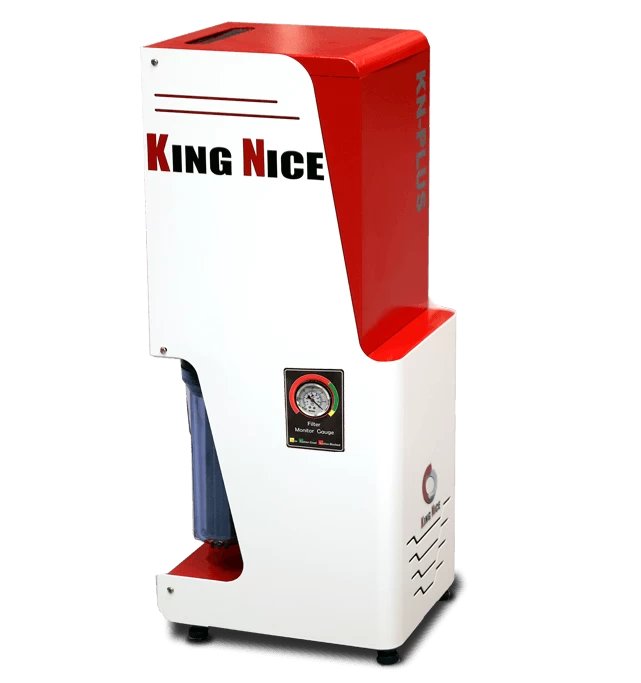

CNC Coolant Skimmer applies to all types of machine cutting fluids and scrapes the oil slick oil-water separation, to increase the life of cutting water.
Use Value to reduce the CNC machine failure rate and processing non-performing rate.
Water and Coolant Saving.
Reduce the cost of CNC mechanical downtime and personnel operations.
Maintain the tank liquid capacity, and reduce the temperature rise.
-

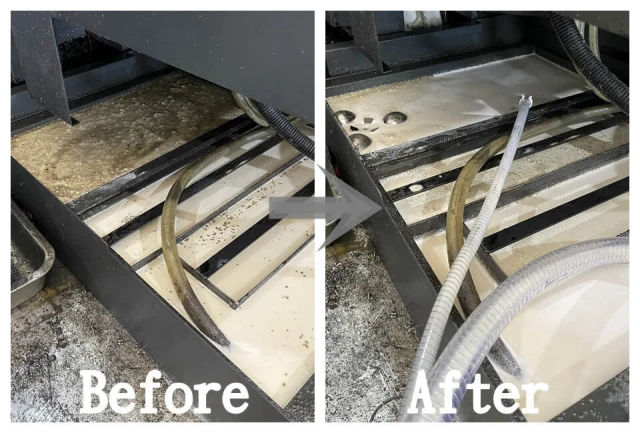

It can effectively separate the slide oil, foreign matter oil, etc.on the surface of the water tank. Reduce the foul smell produced by the fusion of cutting fluid.
-
Reduce oil mist and liquid fly rafts causing grease on machinery and workpieces. Free from skin irritation and allergies.
-
Reduce workpiece corrosion, and rust, improve machining accuracy, and extend tool life.
-
Purify cutting fluid to stabilize its quality, extend life, and improve processing efficiency.
-
Filter impurities such as suspended solids to prevent backlash from affecting the surface of the motor and the workpiece.
-
Stop the production of anaerobic bacteria and reduce the frequency of changing cutting fluid.
-
Reduce pipe and motor blockage failure rate.
-
Reduce labor costs and cleaning time for cutting fluids. Save processing costs for waste oil recovery.
|
Item Model
|
KN-PLUS | KN-PLUS2 | Unit |
|---|---|---|---|
| Machine Size | 350X280X850 | 350X280X850 | mm |
| Net Weight | 32 | 32 | kg |
| Capacity | 35 | 35 | L |
| Effiency Capacit | 720~1500 | 720~1500 | L/h |
| Timer System | Optional | YES | - |
| Air Inflate System | Optional | YES | - |
| Unit Waste Oil Tank | 4.5 | 4.5 | L |
| Extra Waste Oil | Optional | Optional | - |
| Air Pump | 1.6BAR | 1.6BAR | mm |
