Coolant Oil Separator
Coolant Purify Machine - KN-PLUS
The KN-PLUS Coolant Purifier is designed to remove emulsified lubricating oil and floating grease from CNC coolant systems. These contaminants—depending on the cutting fluid formulation—may form stable emulsions or oil slicks, leading to coolant degradation. Over time, they can cause coolant breakdown, generate unpleasant odors, and impair machining performance.
Developed by KingNice Technology, this Coolant Oil Skimmer efficiently removes tramp oil and suspended solids from the coolant tank, supporting consistent performance across coolant filtration systems. It also reduces oil mist, surface buildup on equipment and workpieces, and minimizes skin irritation risks for operators. As a result, the CNC Coolant Oil Separator optimizes CNC coolant cleaning, enhances filtration separation, and contributes to improved machining accuracy, extended tool life, and reduced downtime.
The CNC Coolant Skimmer is compatible with all types of machine cutting fluids and provides reliable oil-water separation to extend coolant service life.
As part of a complete CNC coolant filtration system, it plays a key role in maintaining clean fluid conditions and reducing the maintenance burden associated with machine coolant filtration.
Key operational benefits include:
Reduced CNC machine failure rates and improved part quality
Lower water and coolant usage, helping minimize overall fluid consumption.
Less unplanned downtime and lower labor-related operating costs
More stable coolant levels and reduced thermal load on the system
-
The CNC Coolant Oil Skimmer effectively removes slide oil, tramp oil, and floating contaminants from the surface of the coolant tank
➤ Improves skimming efficiency and helps eliminate unpleasant odors caused by emulsified fluids
-
The CNC Machine Oil Skimmer minimizes oil mist and splashing that lead to buildup on machine surfaces and workpieces
➤ Improves workplace cleanliness and reduces the risk of skin irritation for operators
-
Prevents corrosion and rust on workpieces
➤ Enhances machining accuracy and extends tool service life
-
Purify cutting fluid to stabilize its quality, extend life, and improve processing efficiency.
-
The Coolant Cleaner purifies coolant to stabilize fluid quality and extend coolant lifespan
➤ Strengthens overall CNC Coolant Filter System performance
-
Filters suspended solids to prevent contamination and protect motors and work surfaces.
Suppresses anaerobic bacterial growth
➤ Helps reduce the frequency of coolant replacement
-
Reduces clogging in pipes and motors
➤ Supports consistent filtration performance in CNC Machine Coolant Filter systems
-
Reduces manual coolant cleaning time
➤ Lowers waste oil handling and system maintenance costs

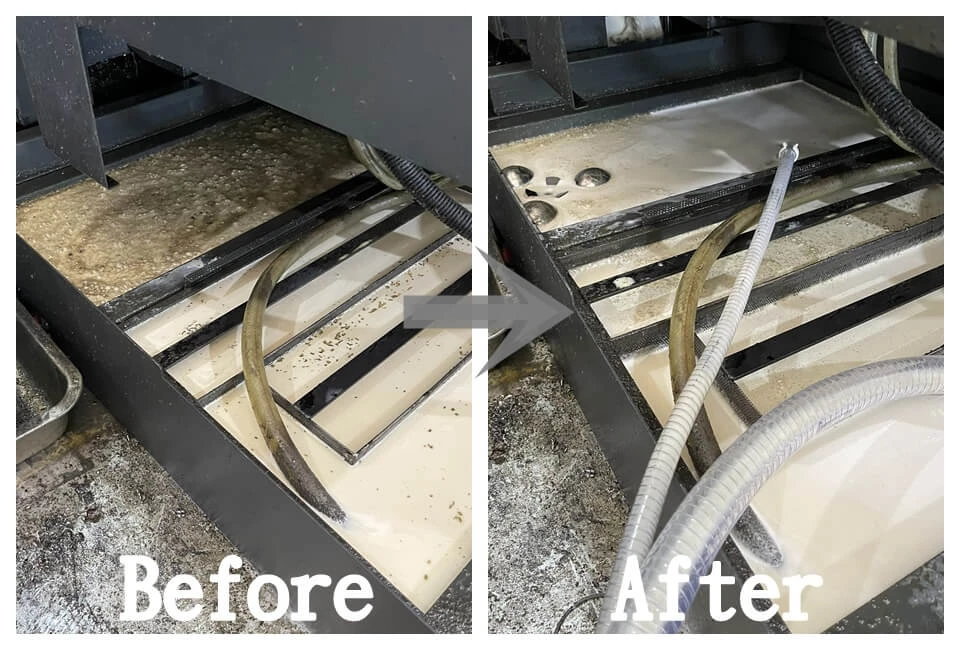

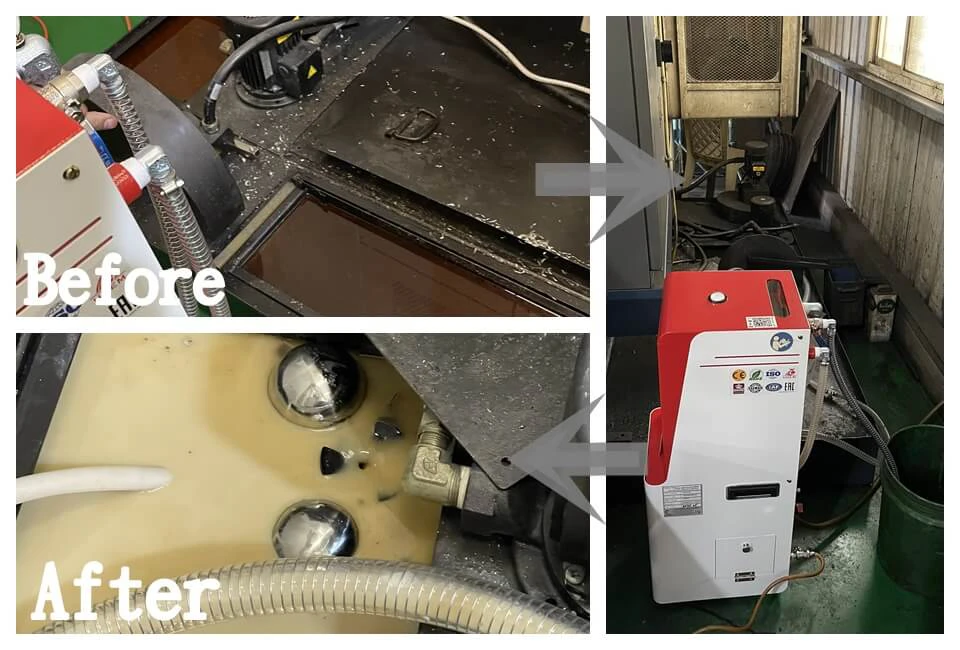

Turn Dirty Coolant into Smart Savings
84%
COST SAVINGS
90%
DISPOSAL COSTS
91%
TIME SAVINGS
|
Item Model
|
KN-PLUS | KN-PLUS2 | Unit |
|---|---|---|---|
| Machine Size | 350X280X850 | 350X280X850 | mm |
| Net Weight | 32 | 32 | kg |
| Capacity | 35 | 35 | L |
| Effiency Capacit | 720~1500 | 720~1500 | L/h |
| Timer System | Optional | YES | - |
| Air Inflate System | Optional | YES | - |
| Unit Waste Oil Tank | 4.5 | 4.5 | L |
| Extra Waste Oil | Optional | Optional | - |
| Air Pump | 1.6BAR | 1.6BAR | mm |
