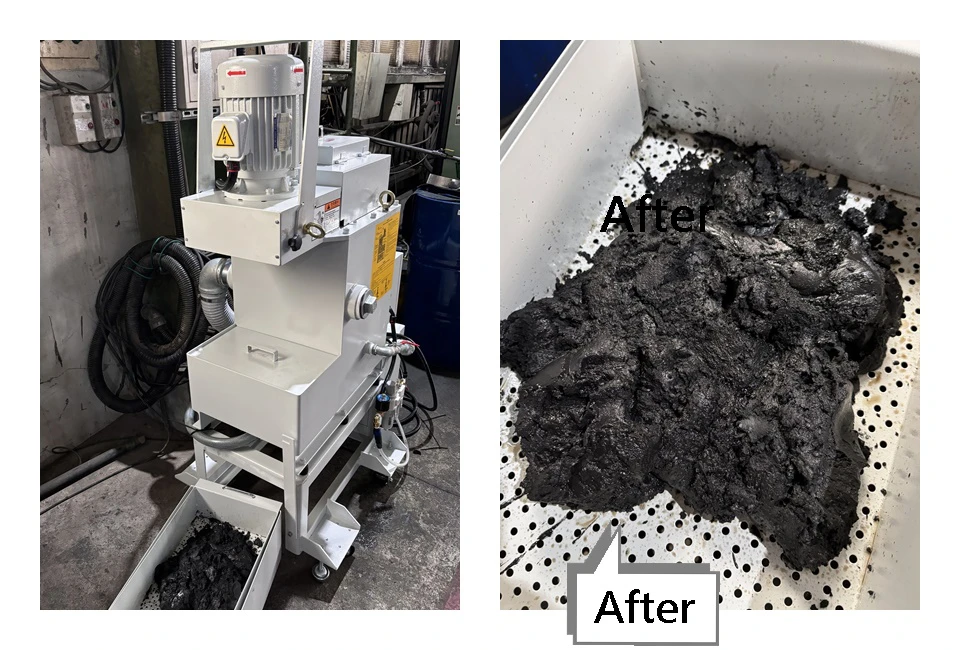

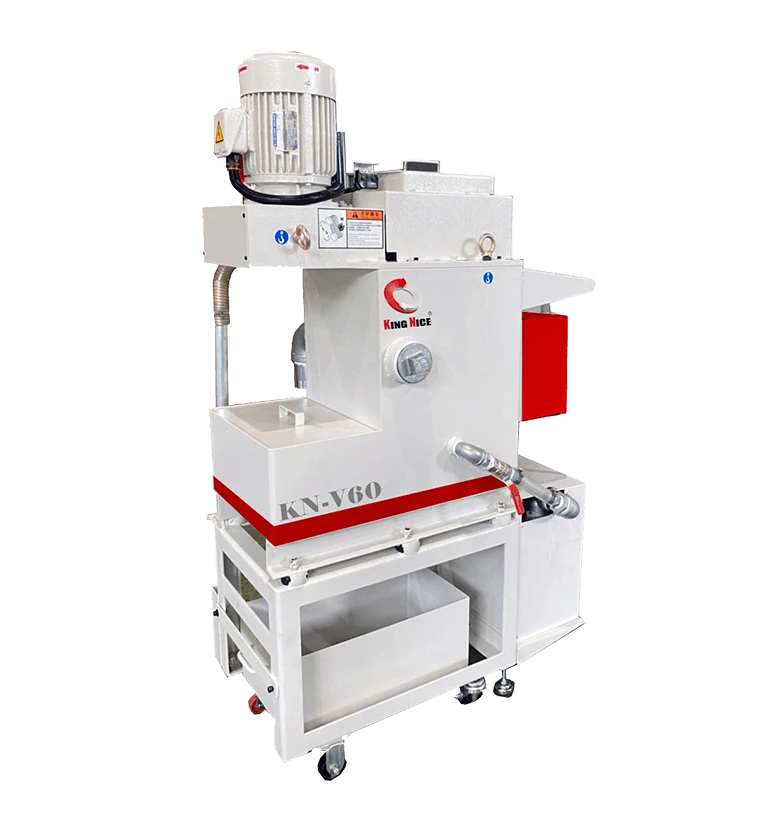

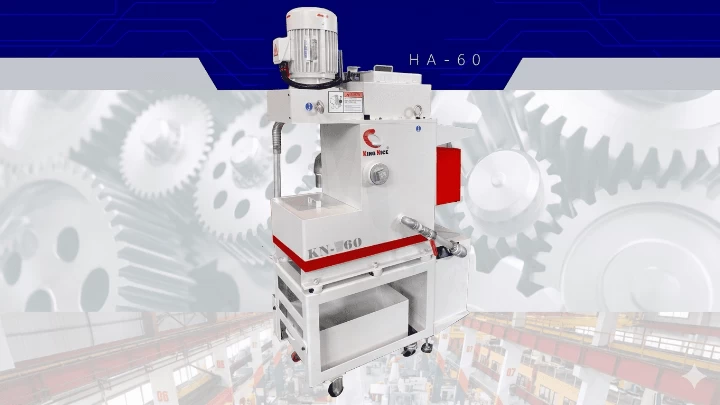

Centrifugal Separator HA-60 / HA-60PLUS

Centrifugal oil separator

by King Nice is designed for industries such as lathes, milling machines, and ceramic processing, efficiently handling materials like silicon, graphite, and ceramics.

It has two main functions:
1.Centrifugal water separator is suitable for high-frequency and CTS central water outlet systems, providing effective solutions for grinding precision cutting sewage treatment and sludge from screw processing.
2. Centrifugal sand separator is ideal for dealing with carbon powder, glass powder, and fine powder particles in liquids, ensuring optimal water purification and filtration. These systems are suitable for both water-soluble and oily solvents, enhancing the overall performance and longevity of industrial equipment.

Applicable industries：Lathes, milling machines, boring grinders, special machines, ceramic processing, high frequency, CTS central water outlet system, grinding precision cutting sewage treatment, paint, sludge generated by screw processing... and other water purification and filtration systems

Applicable materials：Silicon, graphite, ceramics, carbon powder, glass powder, aluminum powder, stainless steel powder, quartz powder, fine powder particles in liquid
Applicable solvents：water soluble, oily

Features

▎No need to remove the upper cover. You can easily remove debris
▎Automatically cleans the inner barrel without touching dirt (requires electric operation)
▎Save manpower and increase chip cleaning efficiency by 70%
▎No consumables, easy to clean and maintain
▎The processing machine does not need to be shut down
▎Mobile, environmentally friendly and efficient
▎Easy to operate
▎Can filter various particulate powders and sediment with an accuracy of more than 95% for chip removal and filtration

Import advantages

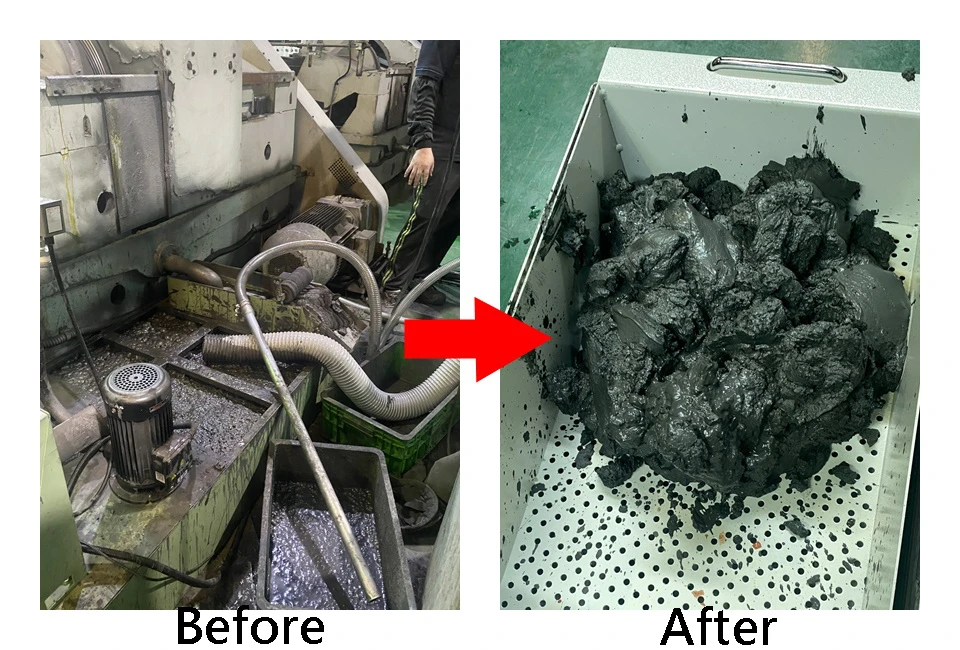

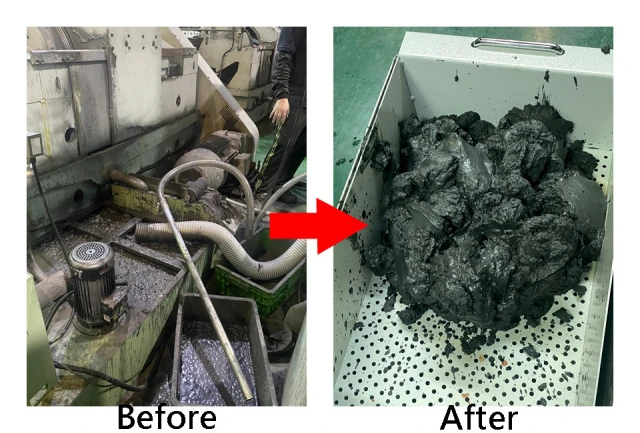

By regularly keeping the cutting fluid of the machine tool clean, you can continue to maintain the best machining accuracy. At the same time, it can also reduce the defective rate of products.
Prevent the deterioration of cutting fluid and reduce the replacement work and time of cutting fluid.
Maintenance-free design, no clogging or filter replacement is required • Therefore, additional time and operating costs (filter costs) can be significantly reduced.
Reduce the cost of machinery downtime and operations.

Principle：The high-speed motor drives the rotary pot to generate strong centrifugal force. When the machining fluid containing impurities and dirt is injected into the inner barrel of the rotary pot, the high specific gravity of the machining fluid containing dirt will stick to the wall of the rotary pot. The liquid with a lighter specific gravity is thrown upward along the wall of the pot. After being concentrated, it is discharged from above the center.
